Made in Italy

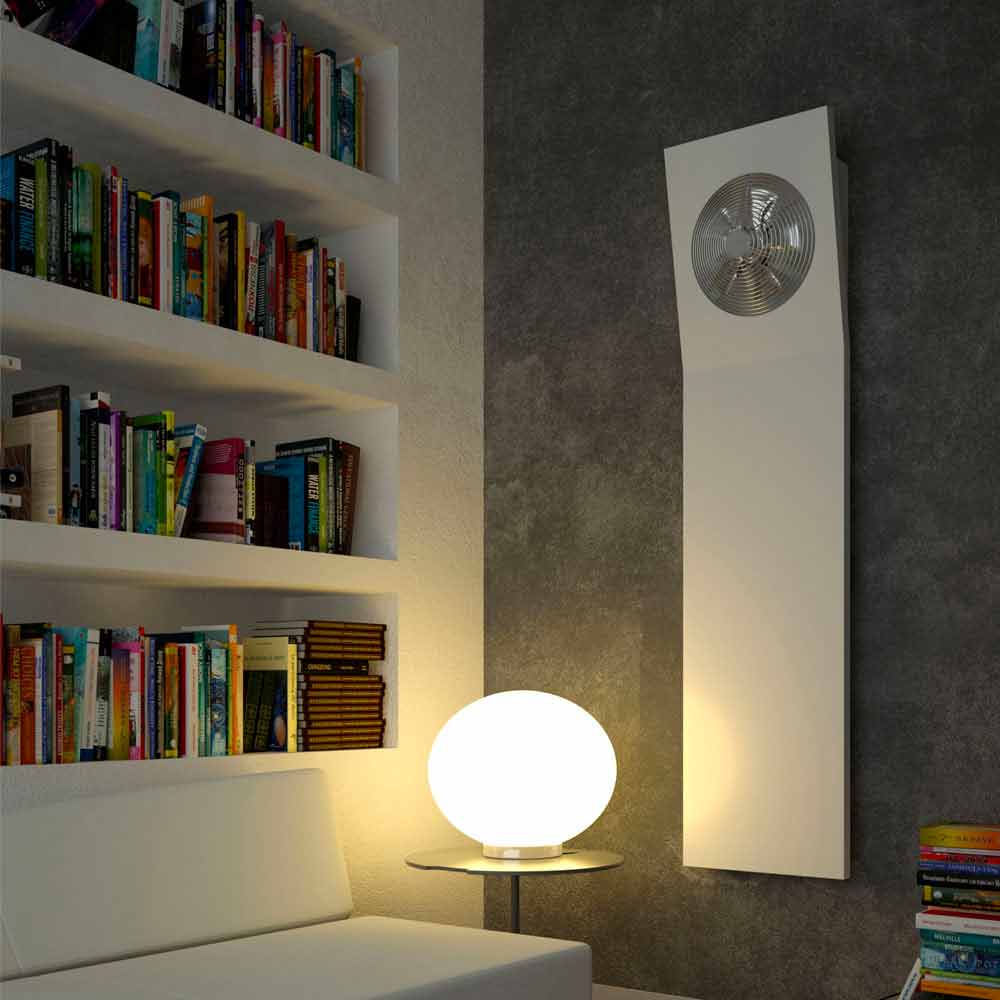

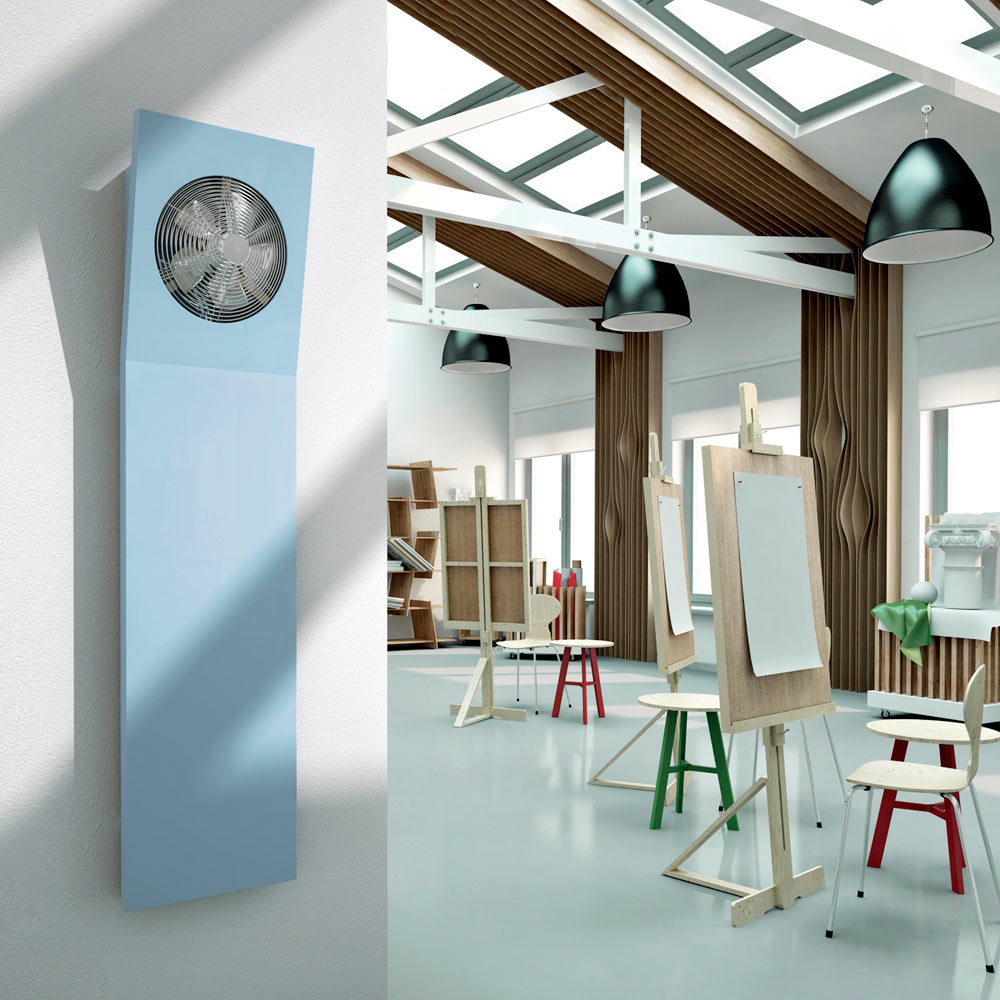

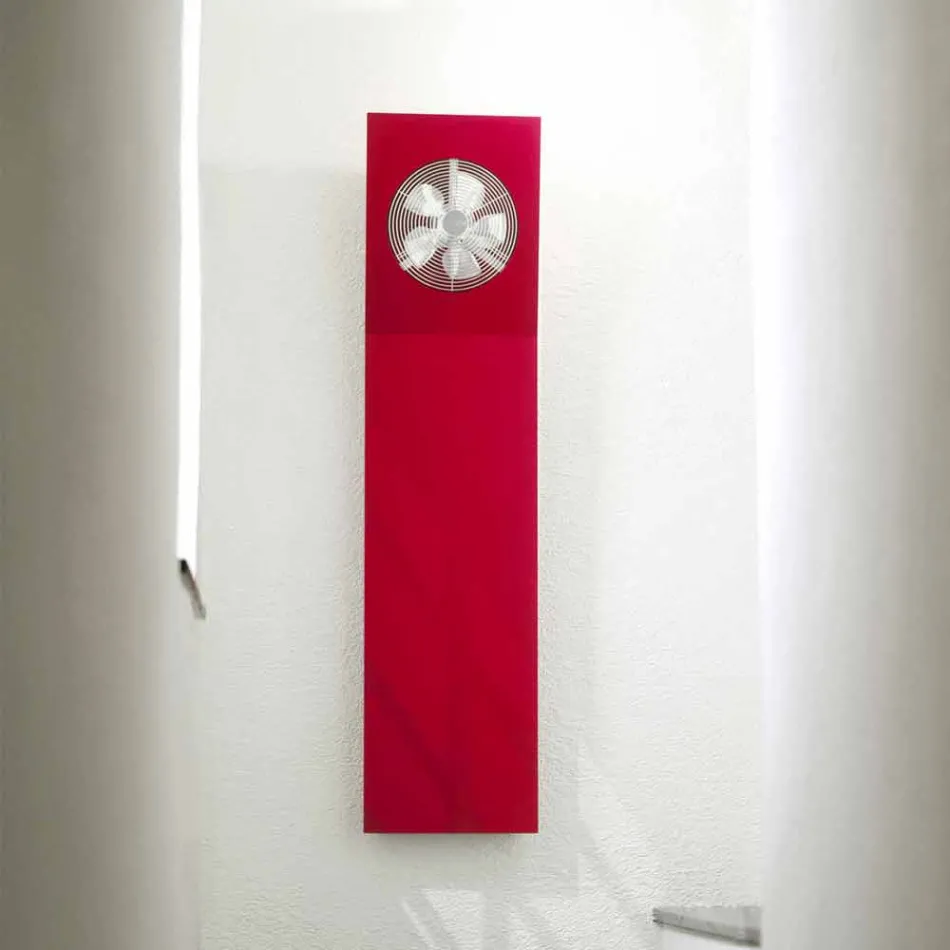

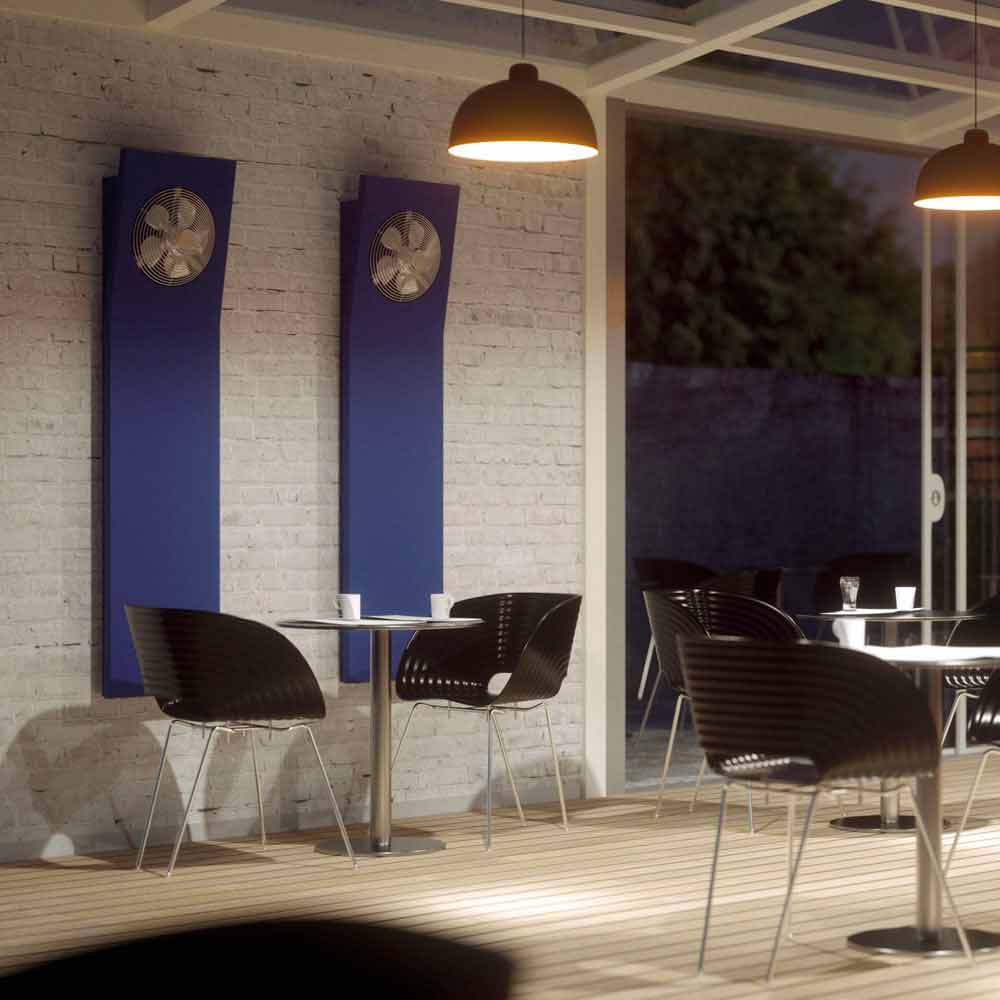

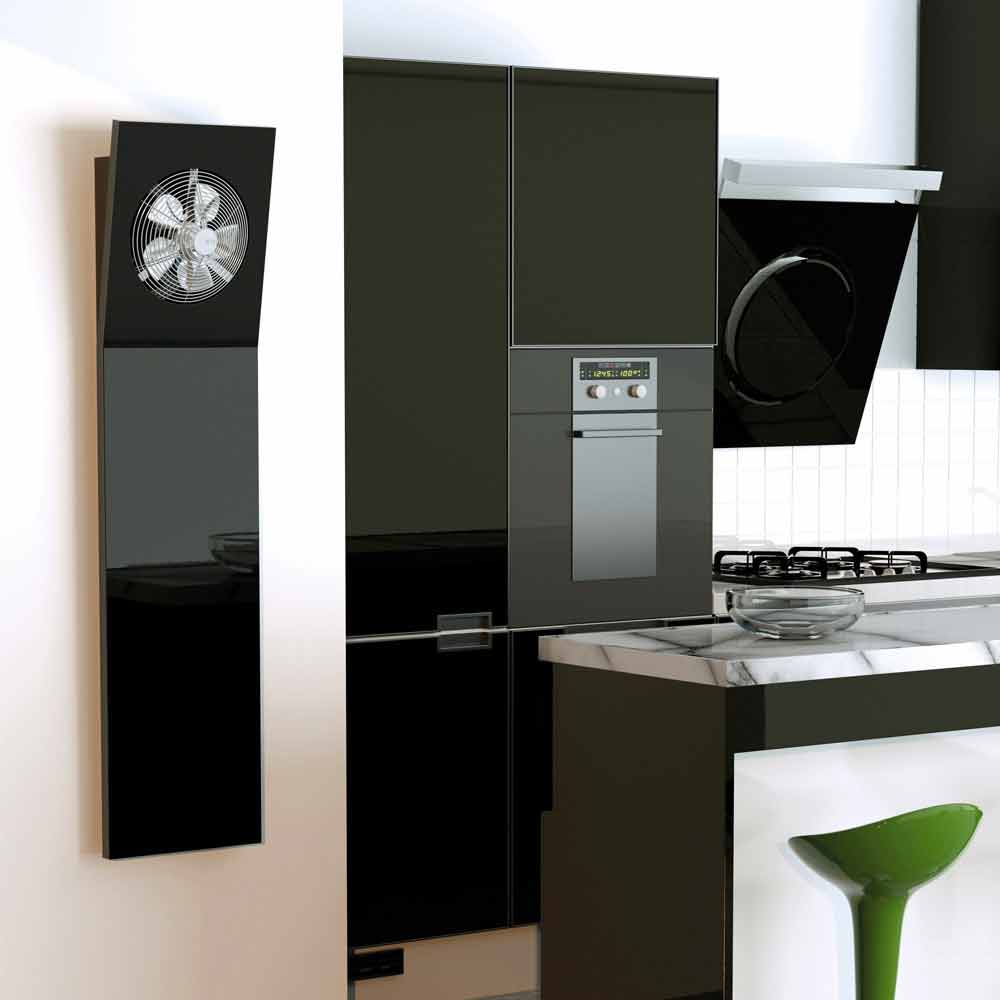

Stylish hot water radiator Snake by Scirocco H, modern design

  • Made in Italy
  • Code: ARIA-H
R 37101,71
Show Options:
  • Stylish hot water radiator Snake by Scirocco H, modern design Viadurini
  • Stylish hot water radiator Snake by Scirocco H, modern design Viadurini

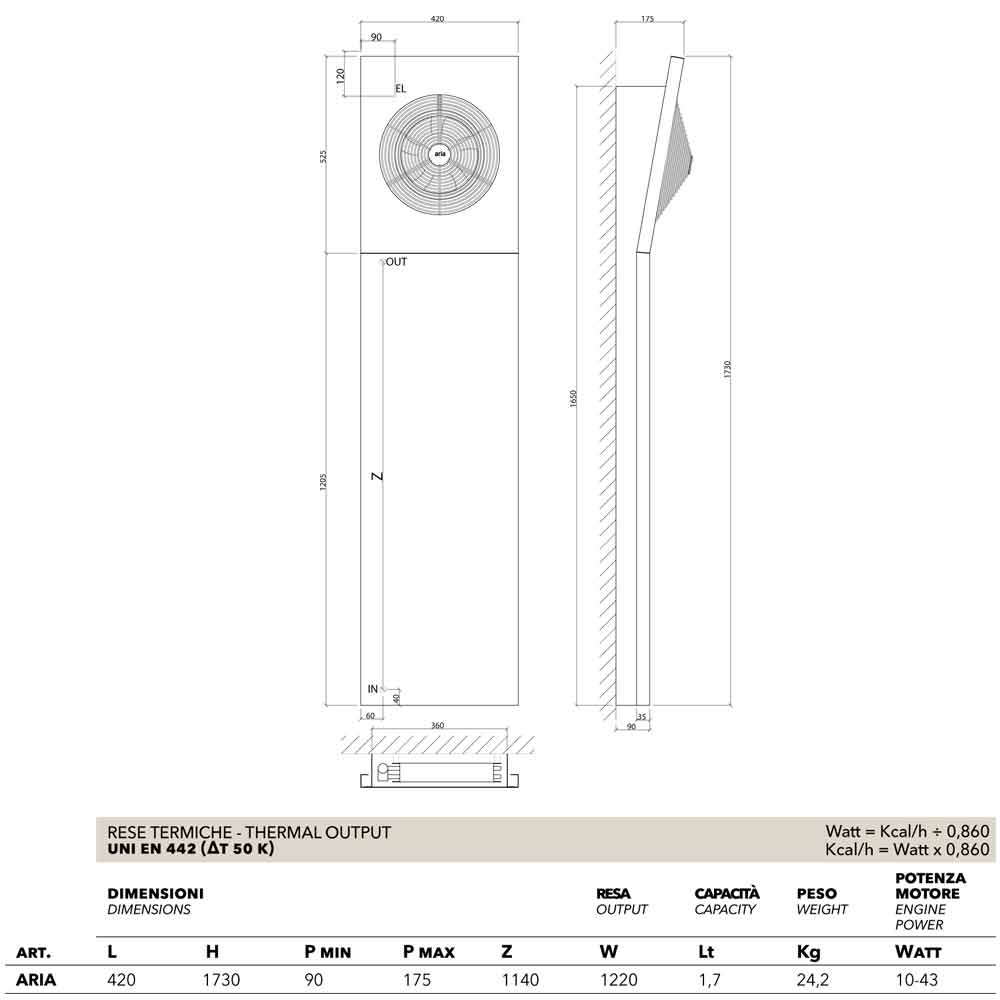

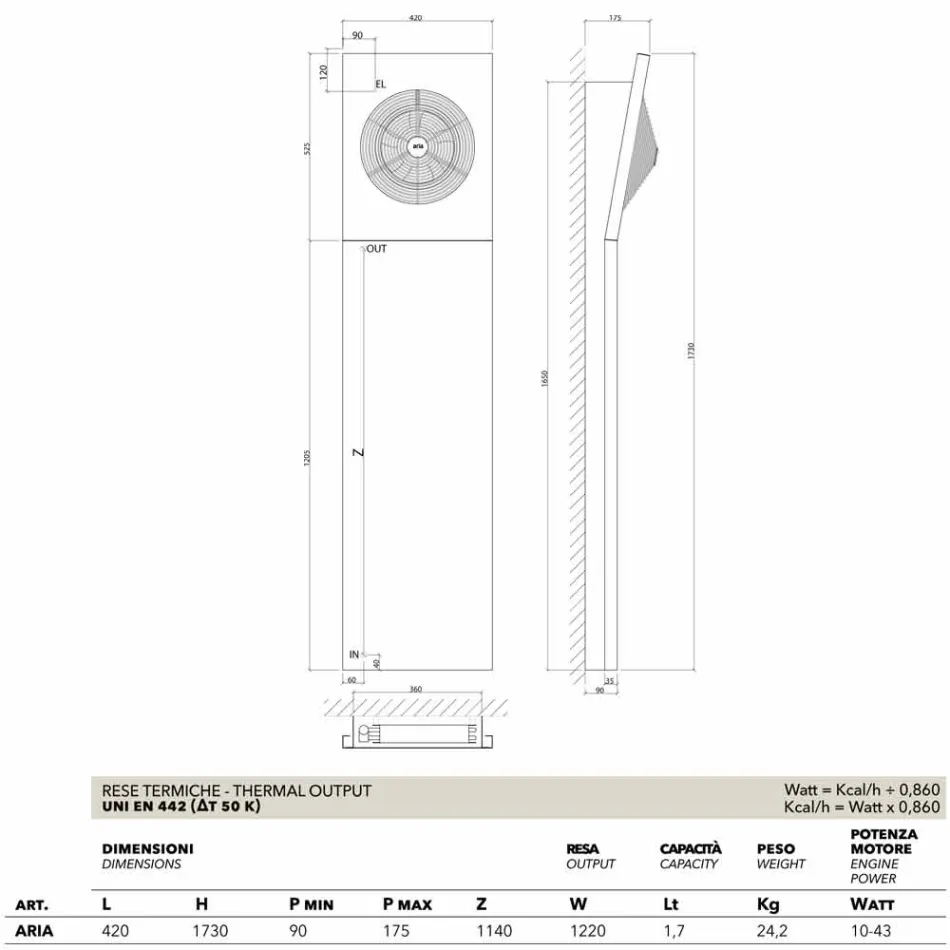

Measures L.420 mm, H.1730 mm, P min.90 mm, P max.175 mm, Wheelbase 1140 mm, Heat output 1220 Watt, Capacity 1.7 Lt, Weight 24.2 Kg, Motor Power 10-43 Watt
Designer Franca Lucarelli - Bruna Raspisarda
Delivery times 20 working days
Warranty 2 years
Scirocco H

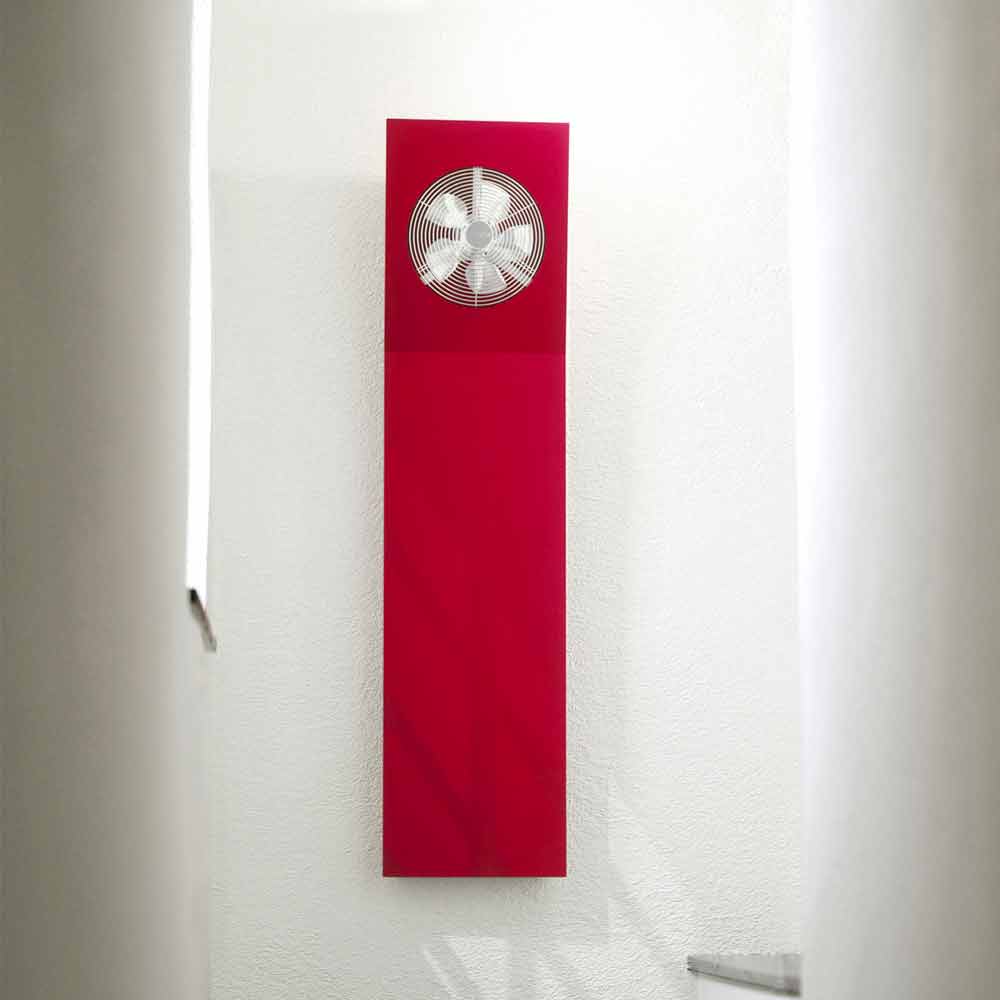

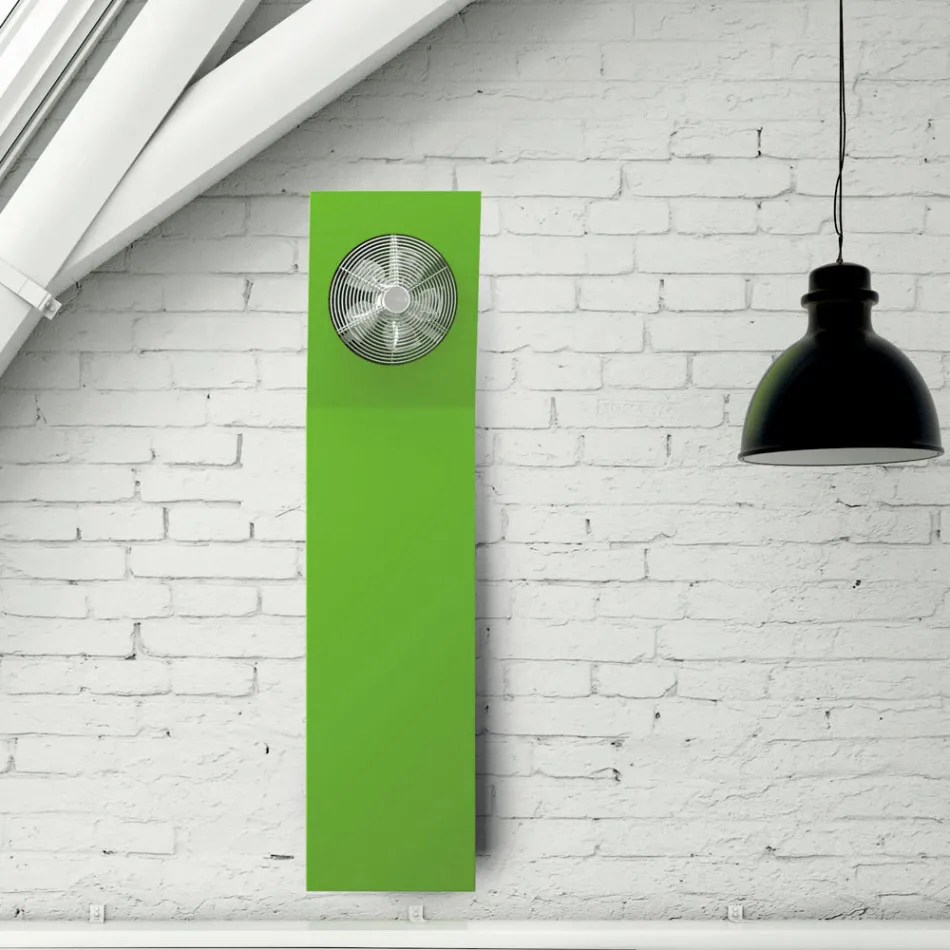

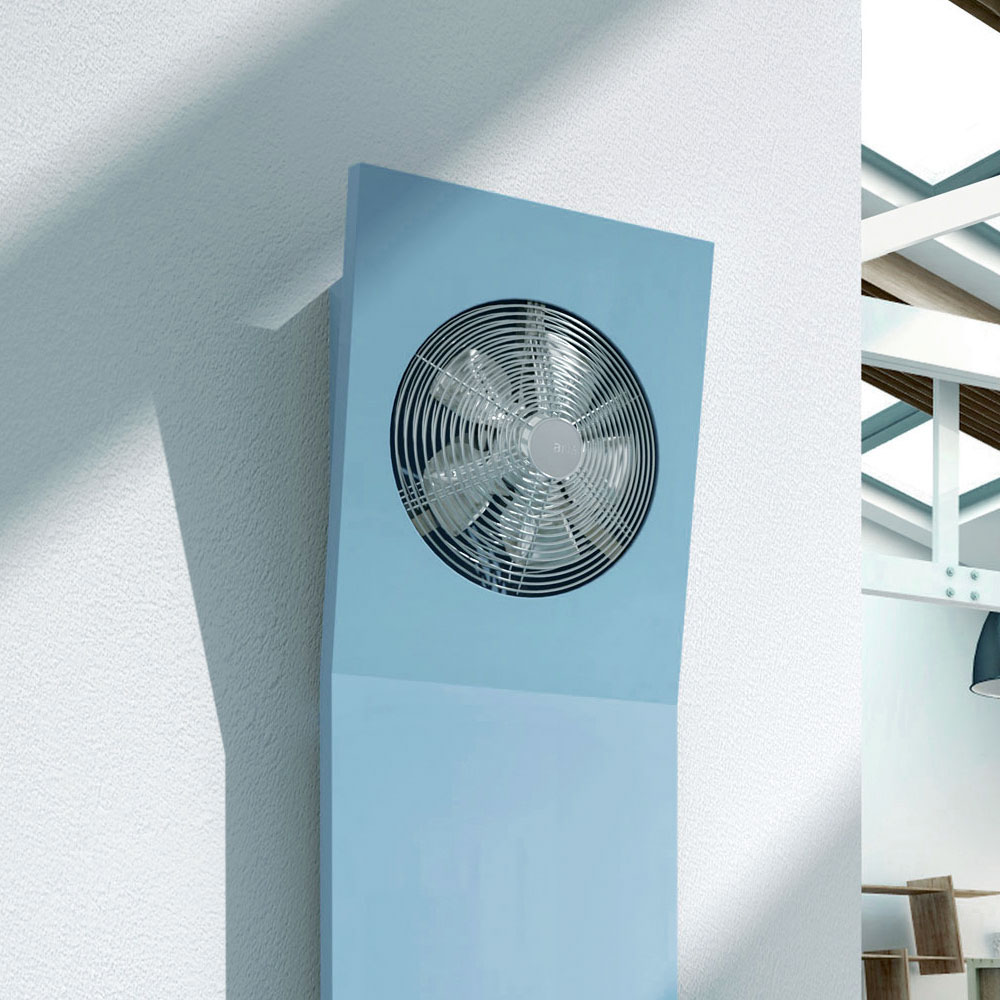

Modern design hydraulic radiator with Aria fan by Scirocco H
Industrial aesthetics and domestic soul skilfully united in a radiator with an original and exclusive design. With Aria, a designer radiator suitable for all seasons has been created for the first time. Vertical radiator in the hydraulic version with fan. Choose the colour that best suits you!

Material:
- Decorative radiator cover: pre-formed steel sheet in two sections, painted
- Exchanger: coil with copper tubes and aluminium fins

Product includes:
- Wall brackets
- Non-thermostatic valve and lockshield valve
- Motor and fan
- Electronic board and control panel on board
- Electric heating not available, summer ventilation only

Technical features:
- Motor: voltage 220/240V, frequency 50/60 Hz, absorption 0.25 A

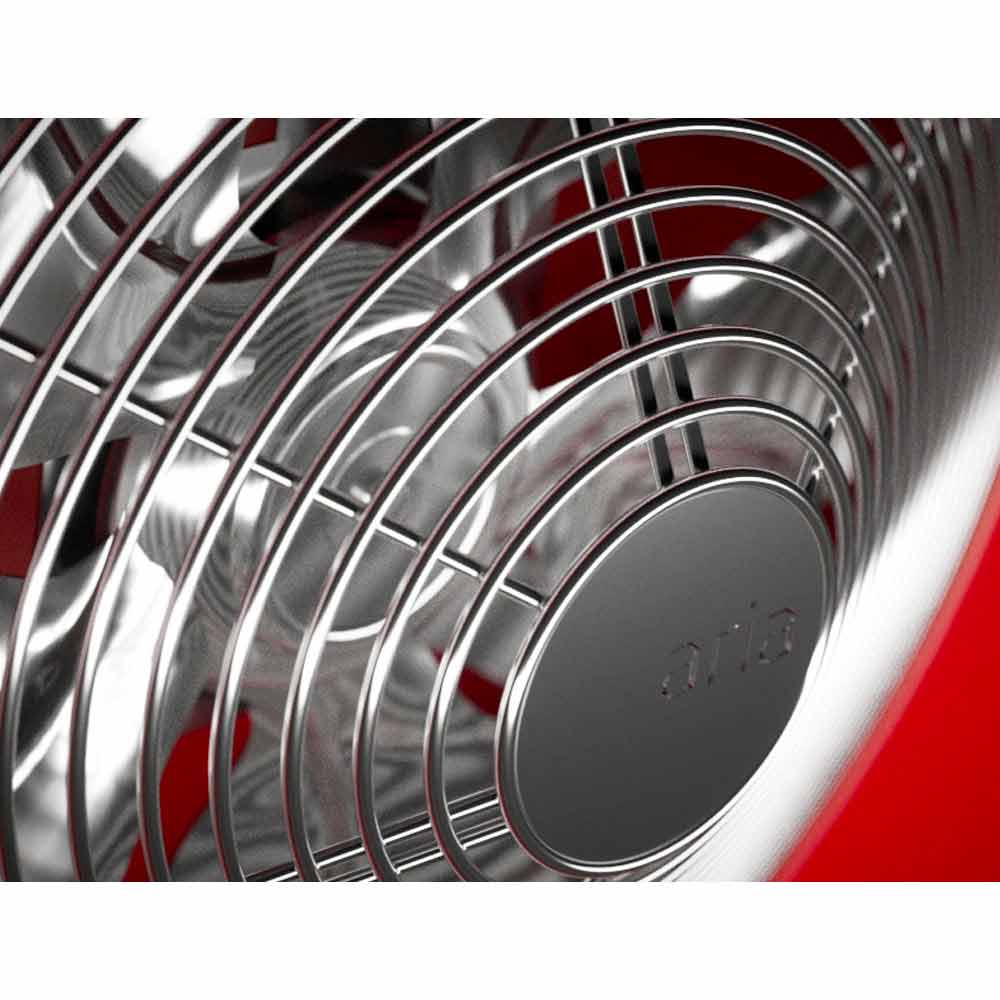

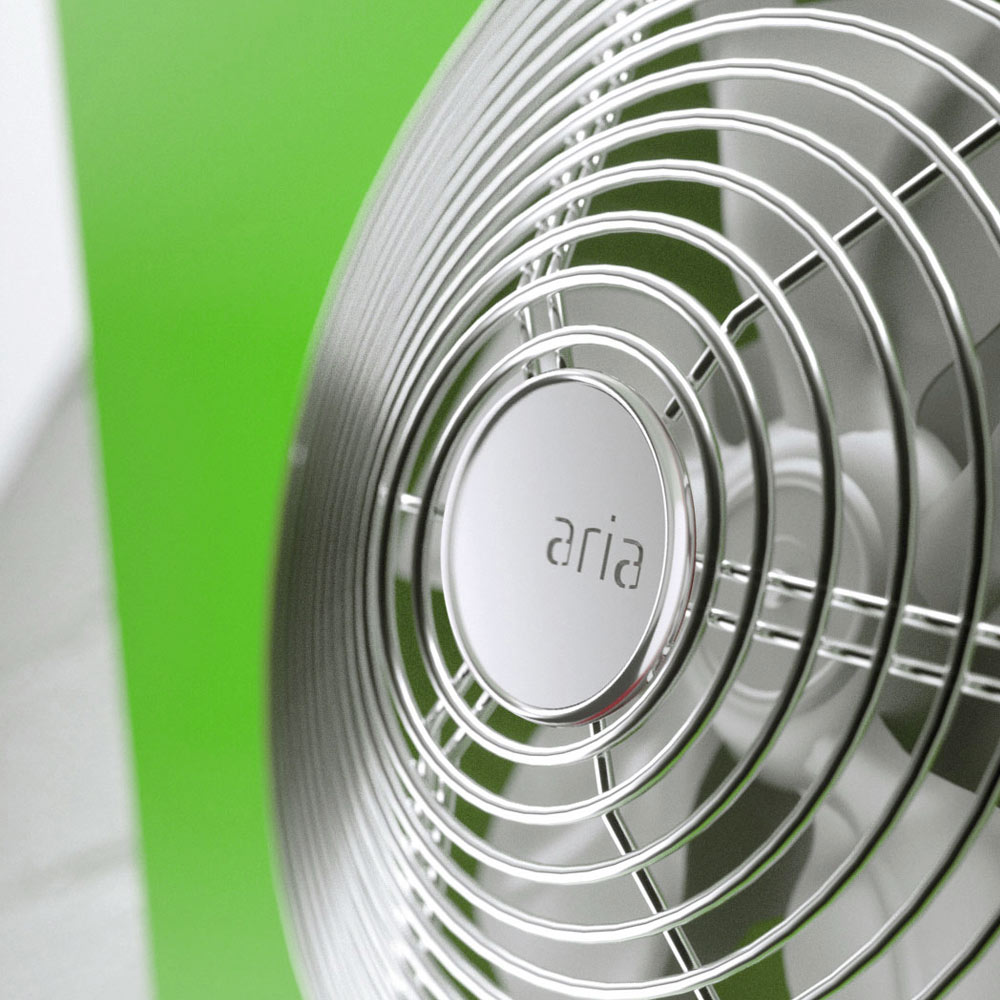

- Fan: aluminium helical, 200mm diameter
- Hydraulic connections: valve and lockshield inside the body of the radiator
- Maximum operating pressure: 5 bar
- Not available for single-pipe systems
- Heat is transmitted via convection, the cover is not radiant

Winter version:
- The radiator has a winter setting where the fan speed is limited, to avoid annoying drafts
- The probe inside the exchanger allows ventilation only with hot water inside
- The radiator heats until the exchanger is powered by hot water, at a minimum temperature of 50°C
- With a room thermostat (not supplied) it is possible to turn off the radiator or interrupt the flow of hot water

Summer mode:
- The radiator has a summer setting where the maximum fan speed is left free
- The probe inside the exchanger is automatically excluded
- When turned on, the radiator produces a pleasant movement of air

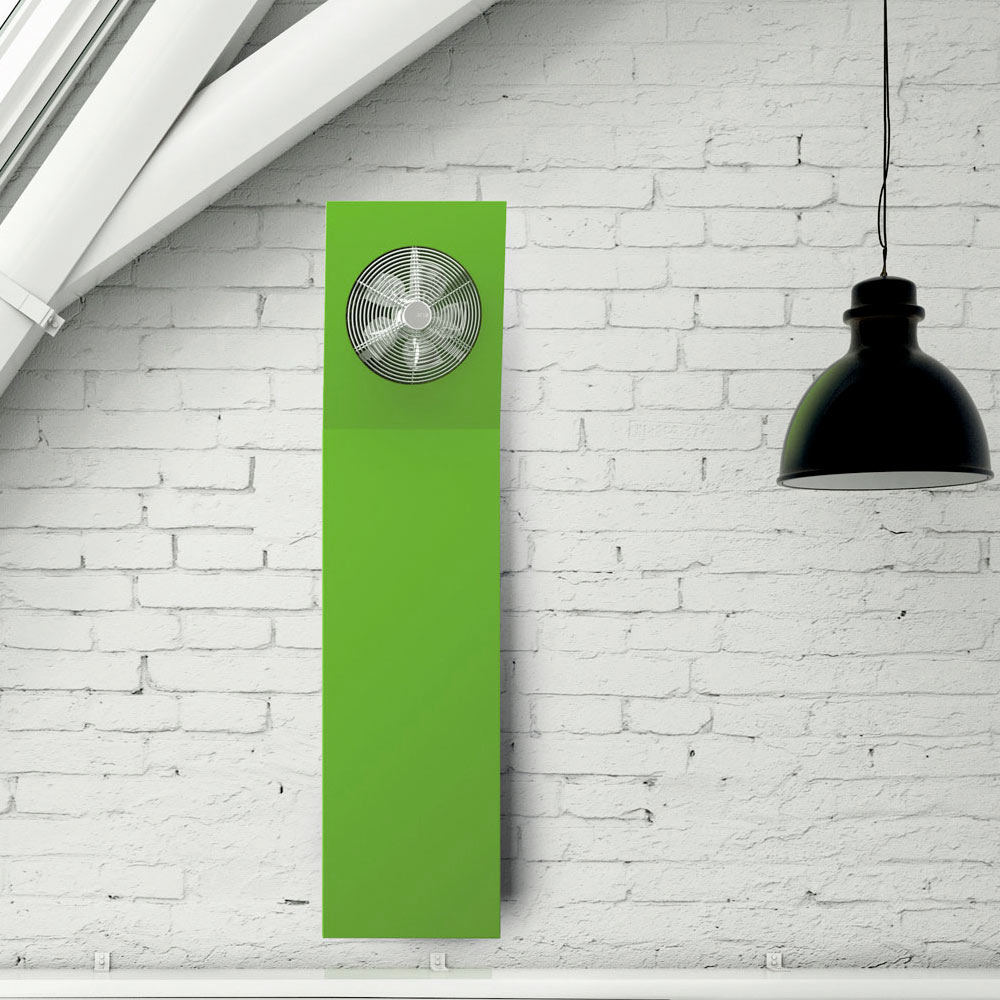

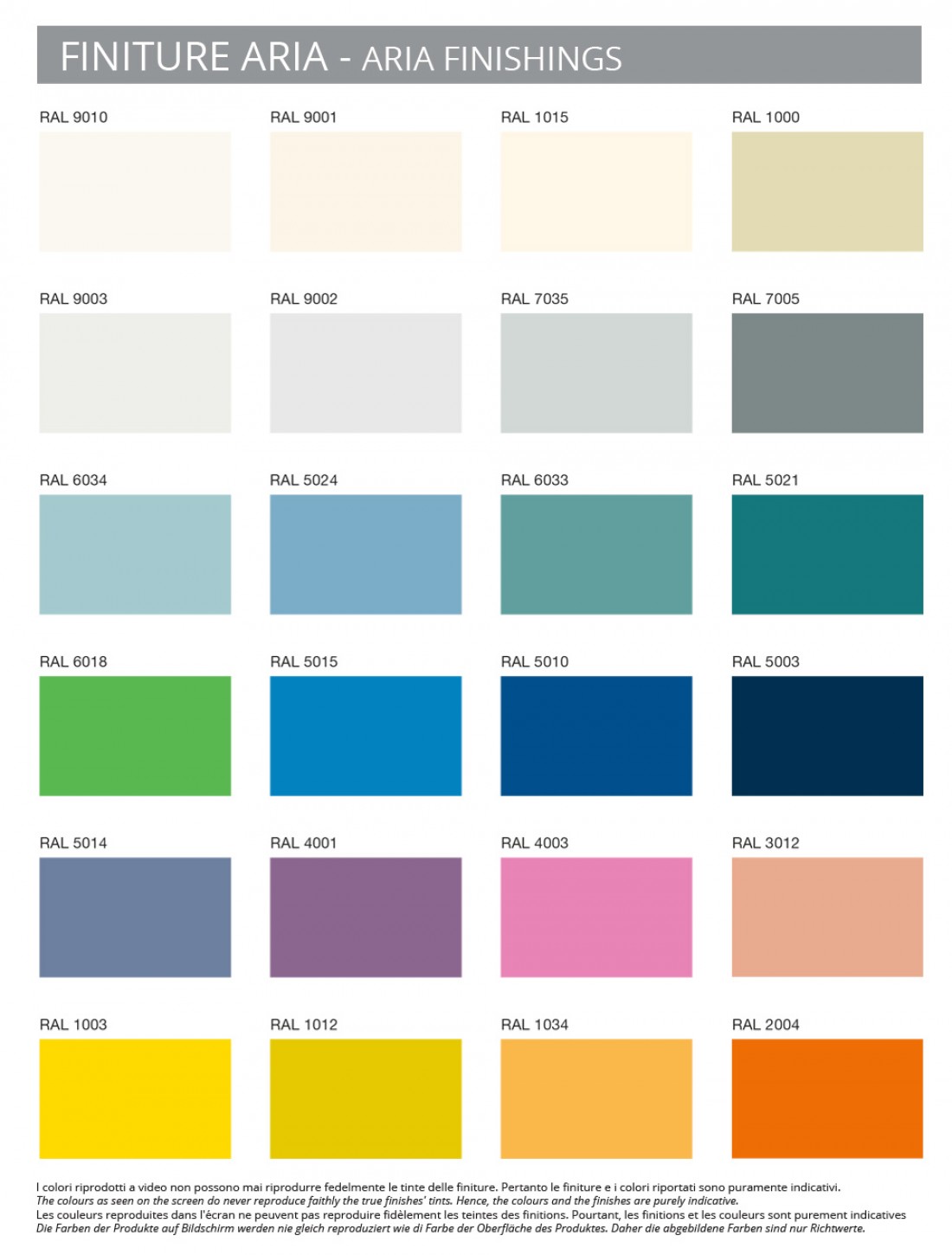

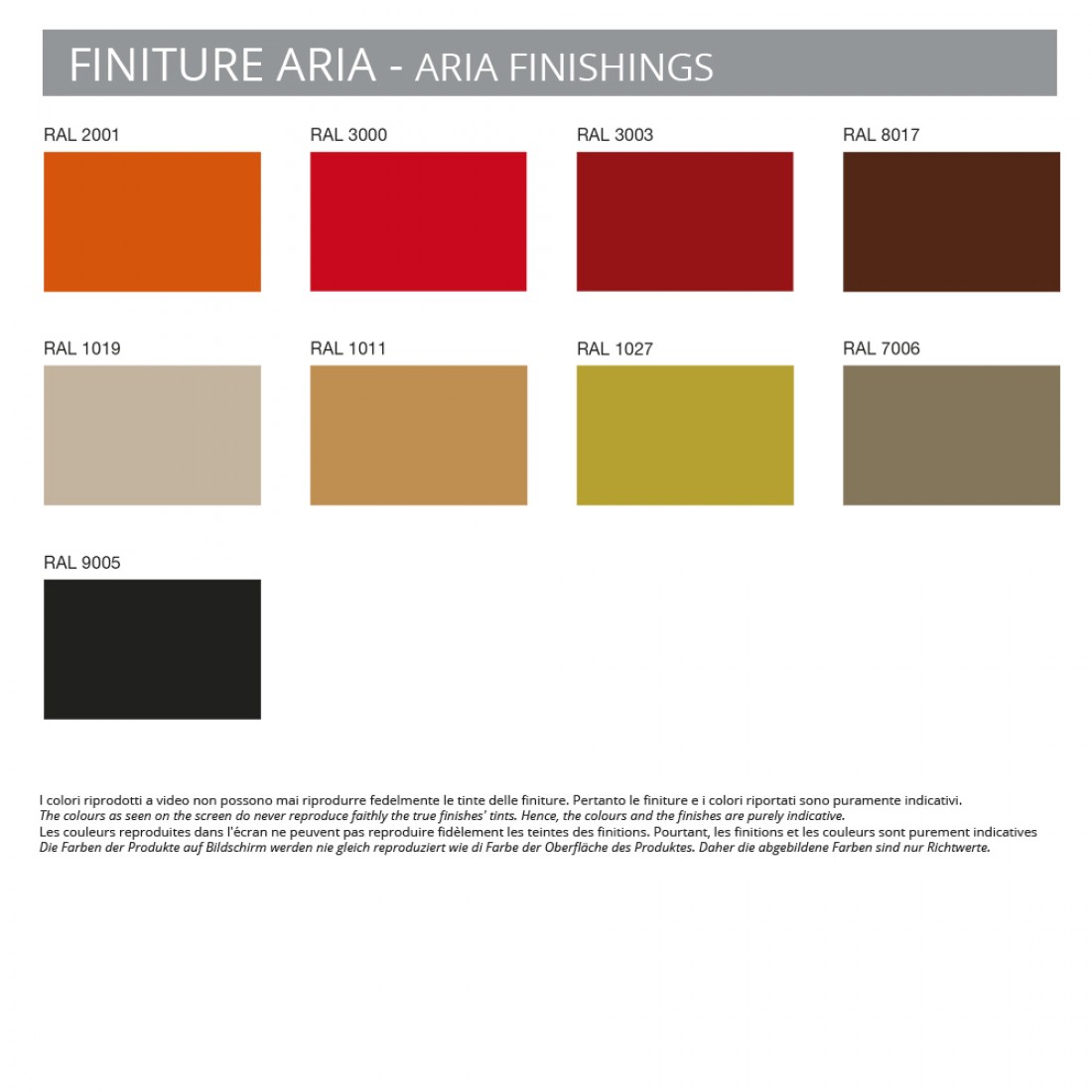

Radiator available in different colour variations: view the colour chart and indicate the desired colour code in the appropriate box.
NB: indicate the type of tube (copper or multilayer) and diameter when ordering. In the absence of provisions, the 12mm copper pipe fitting will be supplied.
