Modern design hydraulic lego radiator Brick by Scirocco H

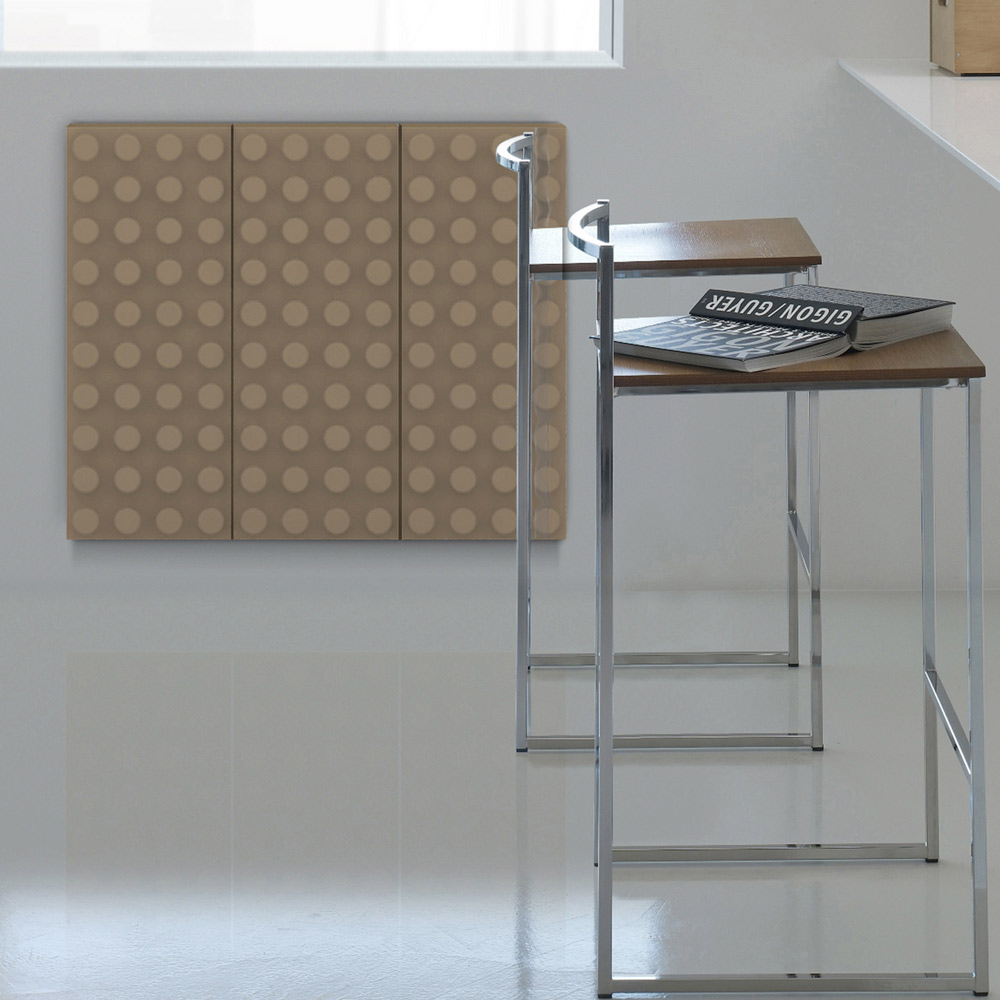

Colorful radiator with a modern and fun style, in the hydraulic version. A project inspired by an affective icon shared by all. Multiple colour combinations for horizontal and vertical modular elements. As in a construction game, the elements combine, placing themselves side by side depending on the available space and the necessary thermal output.
Material:
- Heating core made up of an aluminium fin coil and copper return pipes
- Preformed sheet steel cover
Product includes:
- Heating battery
- Cover
- Valve and lockshield valve cannot be thermostaticized
- Breather valve
- Wall mounting
- In the composite version, a connection kit between modules is supplied
Technical features :
- Valve, lockshield holder and hydraulic connections inside the radiator, hidden by the cover
- Maximum operating pressure: 5 bar
- Not available for single-pipe systems

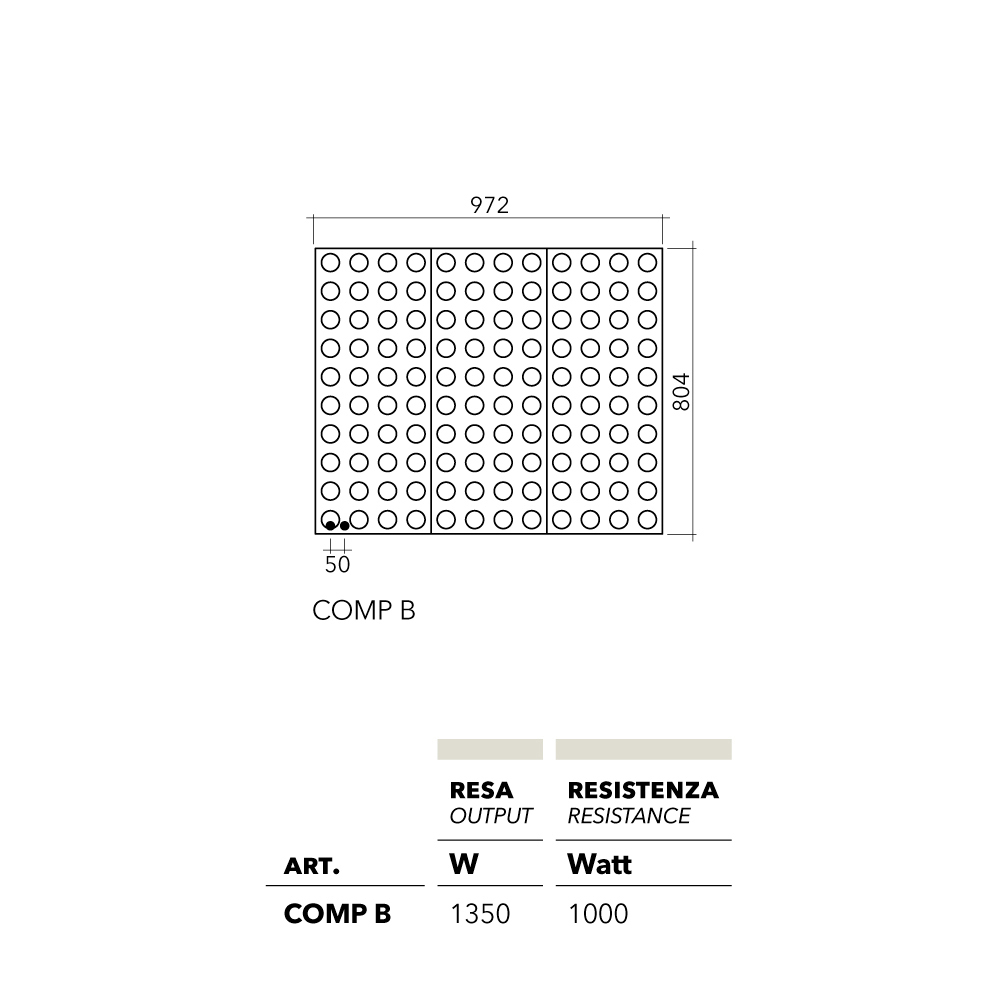

- Each item is supplied with a template for valve centre distance and wall fixing position
- Minimum pipe distance outside the wall: 20 mm for copper, 23 mm for multilayer
- Heat is transmitted via convection, the cover is not radiant

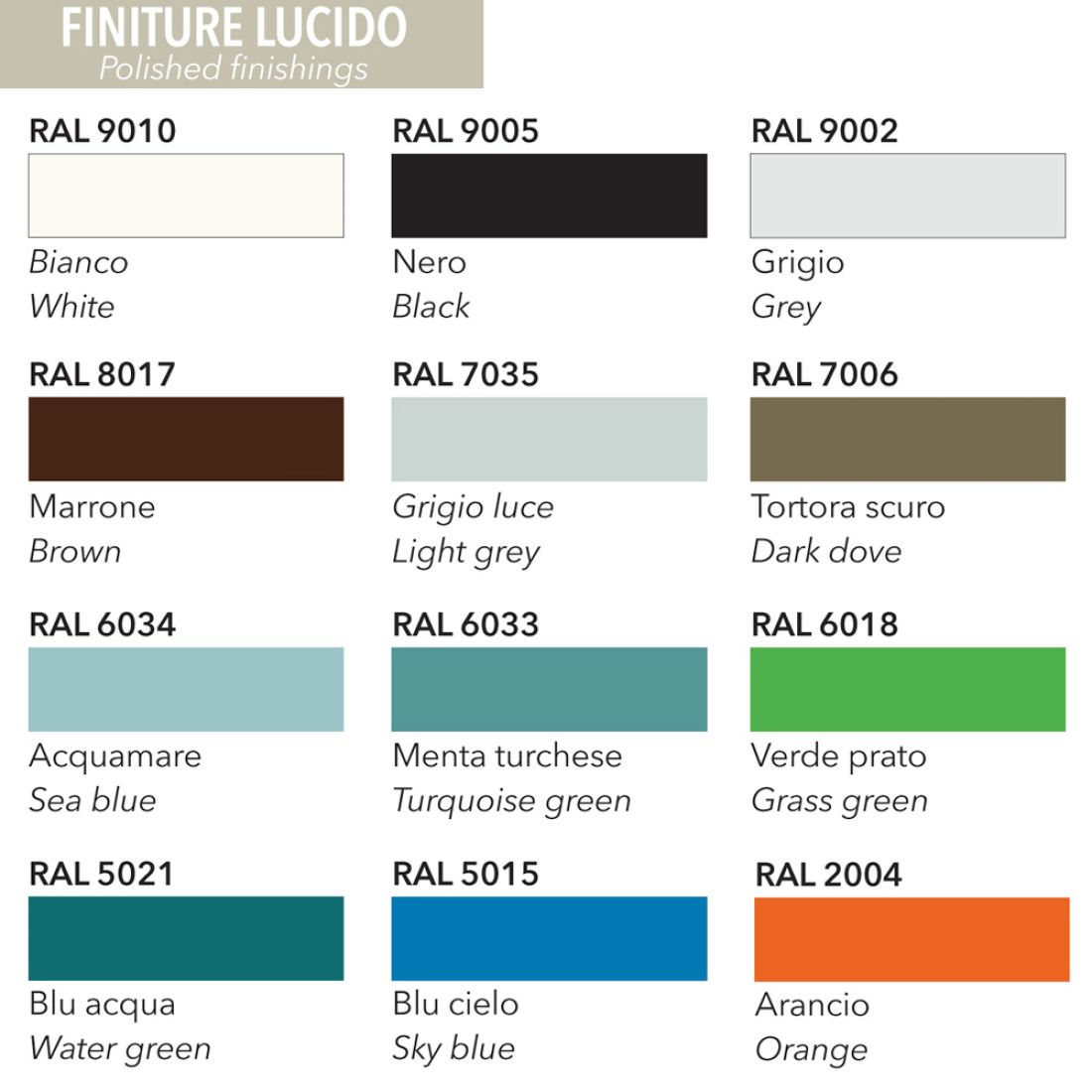

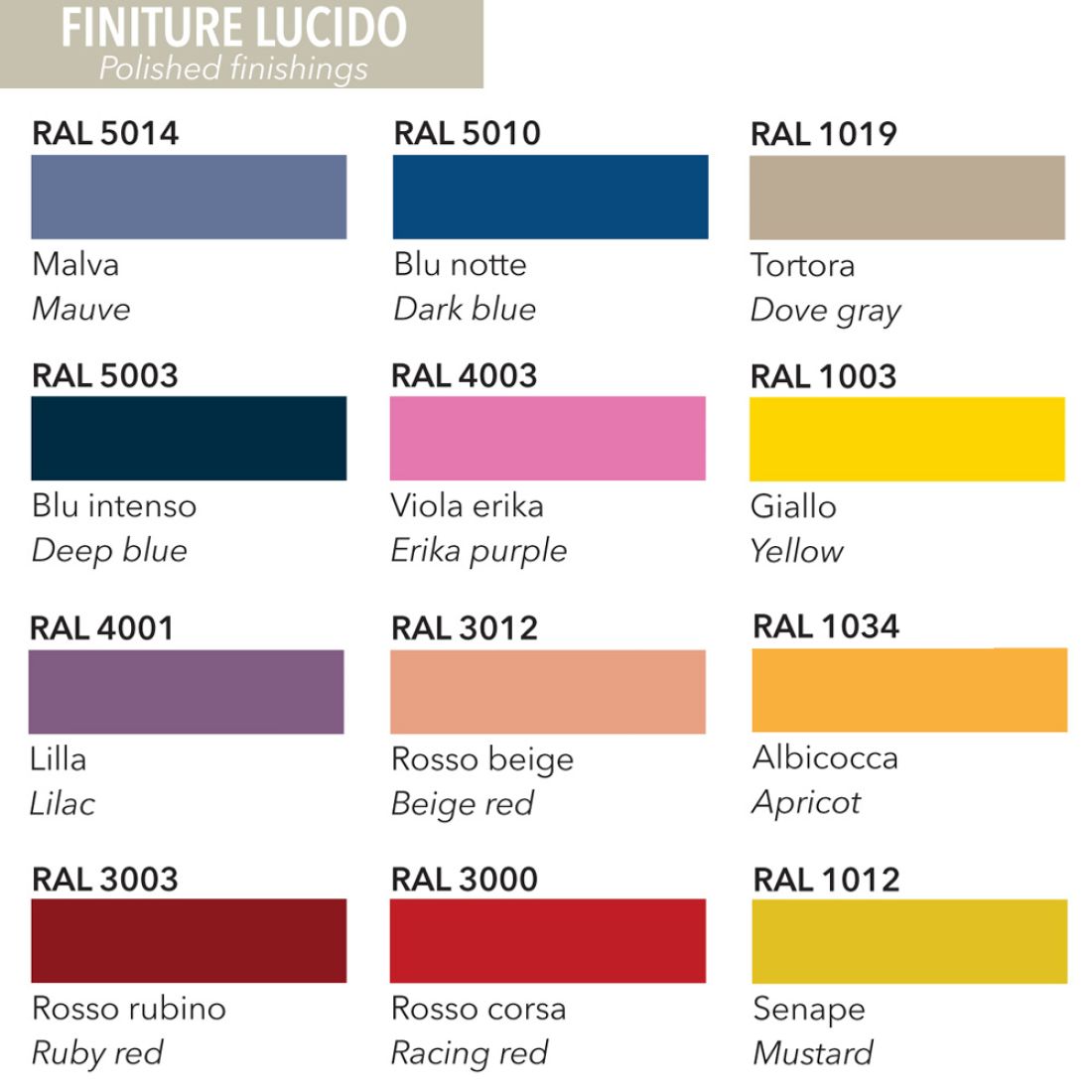

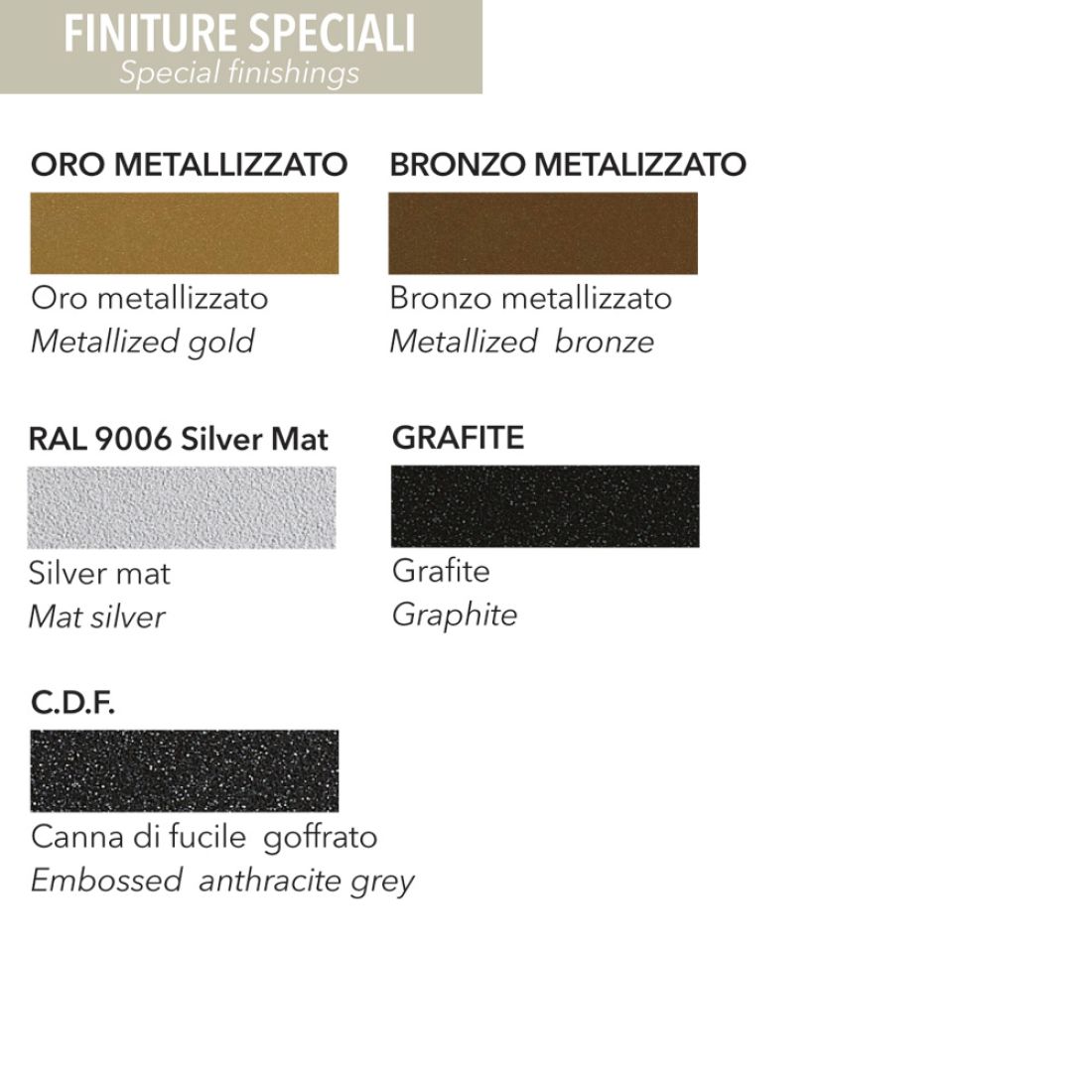

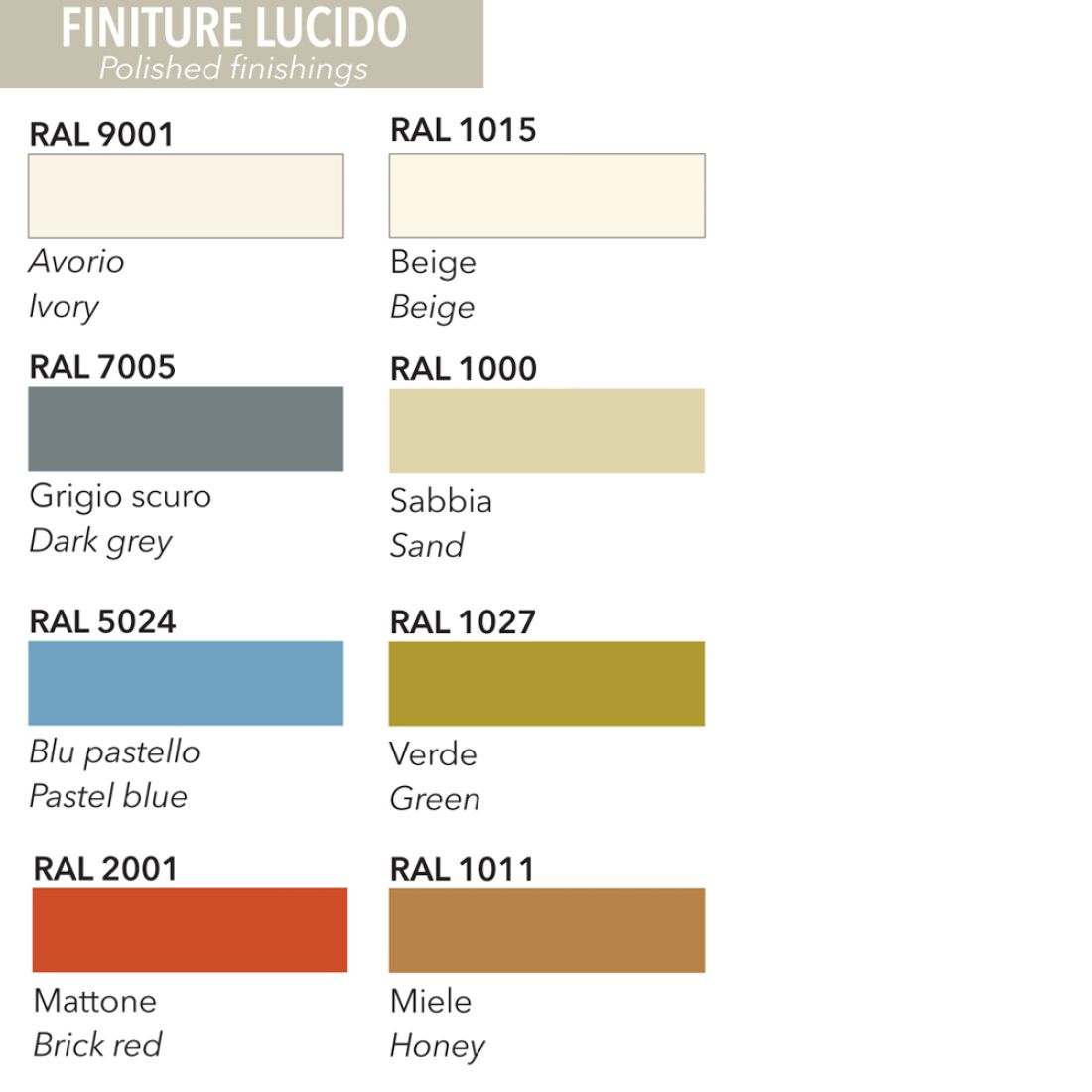

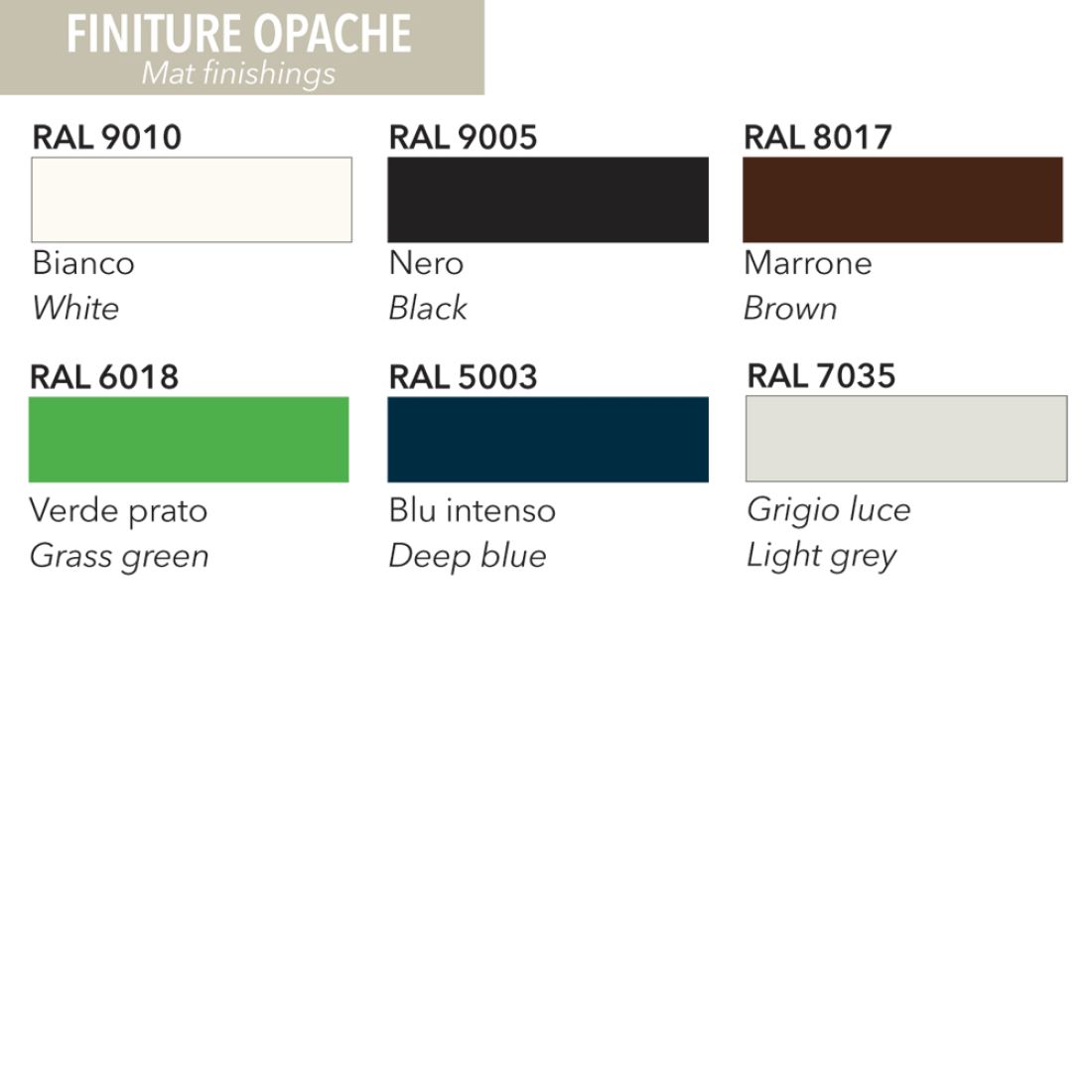

Radiator available in different colour variations: view the colour chart and indicate the desired colour code in the appropriate box.
IMPORTANT: Installation is prohibited in centralized column heating systems (condominium type) where it is not possible to calibrate and balance the other terminals on the same riser column.
Please note: To receive the transparent hanger, request a quote from: cliente@viadurini.it
NB: indicate the type of tube (copper or multilayer) and diameter when ordering. In the absence of provisions, the 12mm copper pipe fitting will be supplied.
